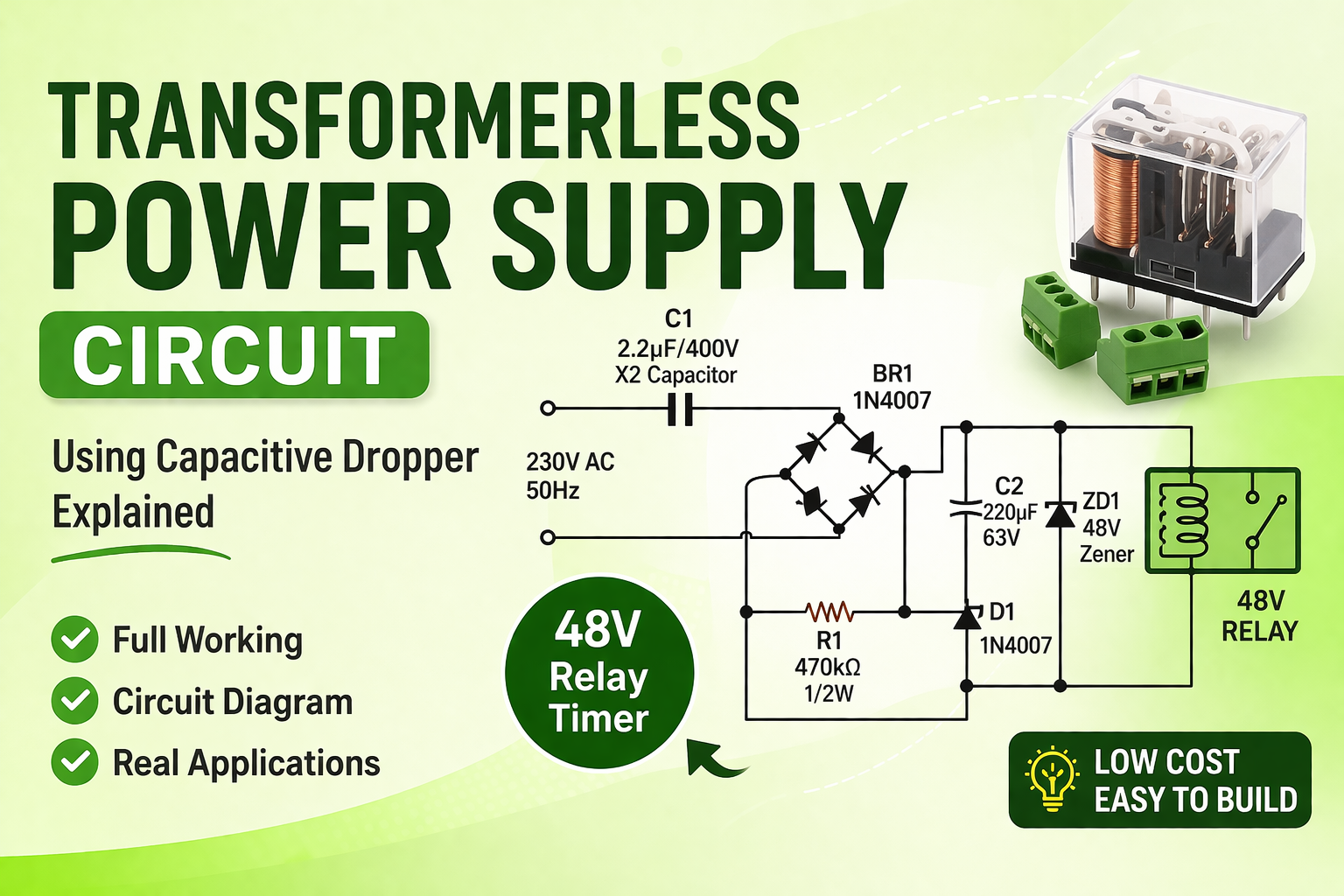

Simple Transformerless Power Supply 48v Using Capacitor

Complete Working Principle of Transformerless Power Supply Circuit

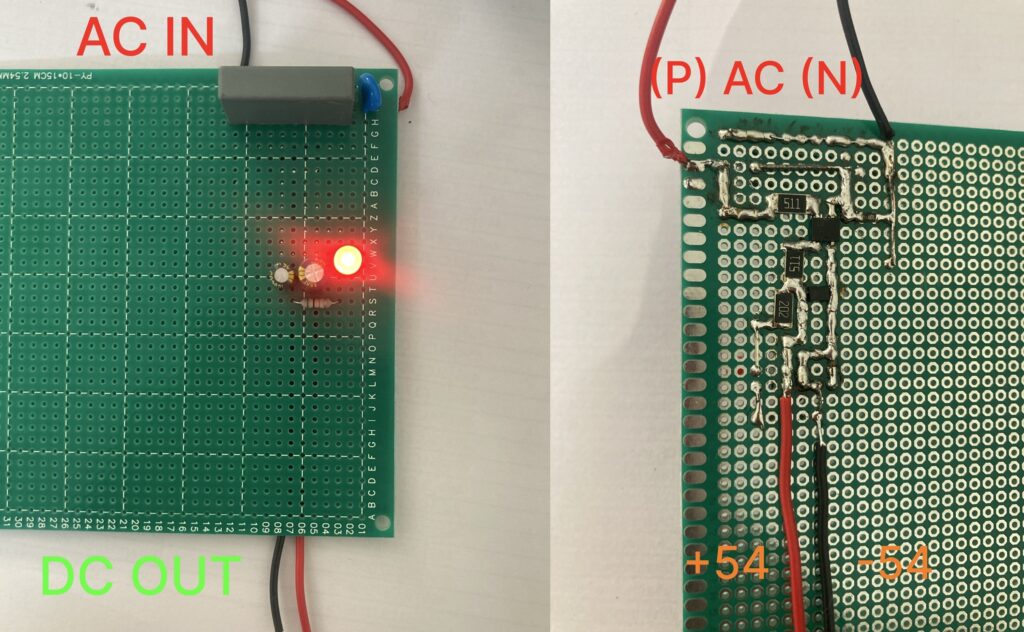

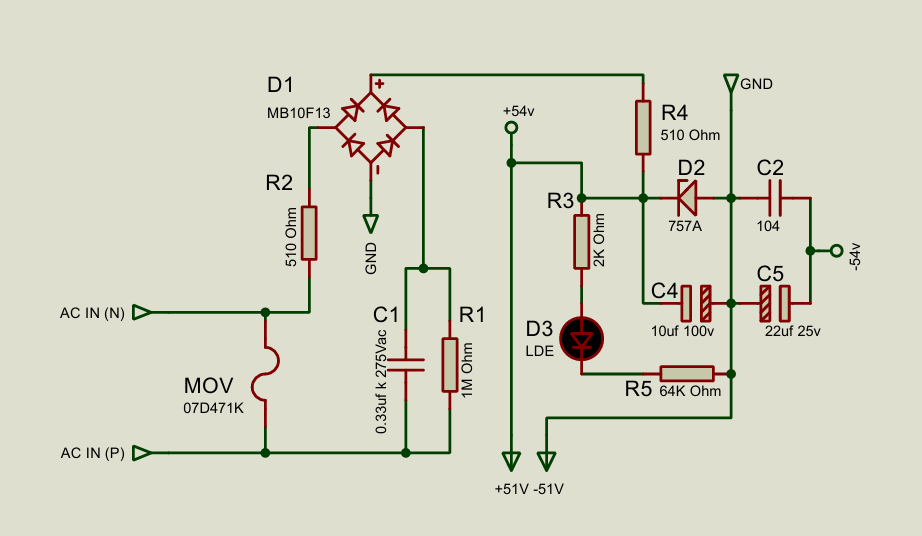

When AC mains (230V) is applied to the circuit, the operation starts from input stage and flows through multiple stages before reaching the relay.

First, the AC input is connected across a MOV (Metal Oxide Varistor). This MOV continuously monitors the voltage. When a high voltage spike occurs, like during lightning or switching surge, MOV becomes conductive and absorbs that extra voltage. This protects the rest of the circuit from damage. Without this component, sensitive parts like capacitor and rectifier may fail early.

After MOV, the AC passes through a series resistor. This resistor plays a small but important role. At the moment of switching ON, capacitor behaves like short circuit for a fraction of time. Because of this, a high inrush current can flow. The resistor limits this sudden current and protects the diode bridge and capacitor.

Now the AC reaches the bridge rectifier. The bridge rectifier converts AC into pulsating DC. During positive half cycle and negative half cycle, the diodes conduct in such a way that output polarity remains constant. So after this stage, we get DC voltage, but it is not smooth. It is pulsating waveform.

The most important stage comes next, which is capacitive dropper. A 0.33µF X2 rated capacitor is connected in series. This capacitor does not drop voltage like resistor, instead it creates reactance. This reactance limits the current flow.

Mathematically, the reactance is given by:

Xc = 1 / (2πfC)

For 50Hz and 0.33µF, the reactance is around 9.6kΩ. So when 230V is applied, current becomes around 20 to 25mA. This is the maximum current available for the entire circuit. So no matter what, circuit cannot draw more than this current.

Because of this current limiting behavior, the circuit becomes suitable for low power applications like relay timer, LED driver, or small control circuits.

Parallel to this capacitor, a high value resistor(1MΩ) is connected. This resistor is not used during normal operation. Its purpose is to discharge the capacitor when power is switched OFF. Otherwise capacitor may hold charge and can give shock when touched.

After current limiting, the rectified DC appears across output. At this point, voltage may go above required level depending on load condition. So a Zener diode is used for regulation.

The Zener diode is selected around 57V. When voltage tries to increase beyond this value, Zener starts conducting and clamps the voltage. This ensures that output remains around 54V to 57V range. This is important to protect relay coil and other electronic components.

Along with Zener, a resistor is used to limit current through Zener and avoid overheating. This stage provides basic voltage regulation, though it is not highly accurate like SMPS.

An LED with series resistor is also connected across output. This LED indicates that power is ON and circuit is working. It also helps during troubleshooting.

Now comes an interesting part, which is generation of negative voltage. Using a combination of capacitors and resistors, a charge pump circuit is formed. This circuit charges and discharges capacitors in such a way that a negative voltage is generated with respect to ground. So along with +54V, we also get -54V.

This negative voltage is used in some timer circuits where dual supply is required for comparators or analog circuits.

Finally, the relay is connected to this supply. The relay coil is rated for 48V. The current required by this coil is around 15 to 25mA. This matches closely with the current provided by capacitive dropper.

When power is applied, enough current flows through relay coil and it gets energized. The relay contacts then switch according to timer logic.

Detailed Functional Flow (Narrative Understanding)

When user switches ON the power, AC mains enters the circuit. Immediately MOV starts protecting from any abnormal voltage. Then current flows through resistor and enters bridge rectifier where AC is converted into DC form.

Then this DC passes through capacitor which limits current. At this stage, even though voltage is high, current is controlled strictly. This controlled current is then converted into usable DC voltage and stabilized using Zener diode.

This voltage is then used to power relay coil and control circuitry. If timing circuit activates relay, current flows through coil and relay switches ON. When timing ends, relay switches OFF.

This complete process happens continuously and reliably as long as load remains within design limits.

Behavior of Circuit

In real usage, this circuit behaves slightly different from ideal condition. Voltage may vary depending on load. If load increases, voltage drops. If load decreases, voltage increases slightly until Zener clamps it.

Also due to ripple, output is not perfectly smooth DC. But relay coil does not require pure DC, so it works without issue.

Over long period, capacitor value may reduce slightly. This reduces available current. If current becomes too low, relay may not energize properly. But good quality capacitor can work for many years.

Real-Life Failure Cases and Field Issues

Even though this transformerless power supply circuit works in many products, in real field conditions some failures are also observed. Understanding these cases is very important for improving design and troubleshooting.

One common issue is capacitor degradation. After few years of continuous operation, the X2 capacitor value may reduce. When capacitance reduces, reactance increases, and current decreases. Because of this, relay may start chattering or may not energize properly. Many technicians think relay is faulty, but actual problem is capacitor aging.

Another real issue is high voltage surge damage. In areas where mains voltage fluctuates heavily, MOV may fail after repeated surge events. If MOV fails short, it can blow fuse or damage other components. If it fails open, then circuit loses surge protection completely.

Sometimes bridge rectifier failure is also seen. This happens mainly due to inrush current or long-term thermal stress. When rectifier fails, output becomes zero or unstable.

Zener diode failure is another case. If Zener diode is underrated or continuously dissipating power, it may heat up and fail. When Zener fails, output voltage may rise above safe level and damage relay or control IC.

In some cases, relay coil itself gets damaged due to continuous operation at slightly higher voltage. Since this is not a tightly regulated supply, small overvoltage over long time can reduce relay life.

Moisture and dust also play role in failure. Since circuit is directly connected to mains, any moisture can create leakage path and cause malfunction or even short circuit.

These real-life failure cases show that even though circuit is simple, proper component selection and protection is very important.

Technical Coverage

This circuit design is widely searched using terms like transformerless power supply circuit, capacitive dropper power supply, AC to DC converter without transformer, relay driver circuit 48V, low cost power supply design, non isolated AC DC converter, capacitor based power supply, and relay timer module circuit.

All these keywords are naturally connected to this design because it is one of the most common implementation of transformerless AC to DC conversion used in relay based systems.

Understanding this circuit also helps in designing capacitor power supply circuits, analyzing non isolated SMPS alternatives, and improving relay control circuits used in automation systems.

FAQ Section

What is transformerless power supply?

Transformerless power supply is a circuit which converts AC to DC without using transformer by using capacitor to limit current.

Is capacitive dropper circuit safe?

It is not fully safe because it is non-isolated. It should be used only in enclosed systems.

Can this circuit drive 48V relay?

Yes, if relay coil current is within 20–25mA range, it can drive successfully.

Why output voltage is not stable?

Because this circuit controls current, not voltage. Voltage depends on load.

What happens if capacitor value reduces?

Current reduces and relay may stop working properly.

Conclusion

Transformerless relay timer circuit using capacitive dropper is a smart and economical design. It works on principle of current limiting rather than voltage reduction. Even though it has some limitations like no isolation and limited current, it is widely used in many real products.

Understanding this circuit gives strong foundation in power electronics and helps in designing low cost AC powered systems.

This complete working principle explanation covers how AC mains is converted into DC, how current is controlled, how voltage is regulated, and how relay is driven successfully for long time operation.
