Detection Studio: Complete Tutorial – Face Recognition + YOLOv8 Object Detection in One Project

Introduction

So here is the thing – most computer vision tutorials out there teach you either face recognition or object detection. You rarely find a project that combines both in one clean, working desktop application. That is exactly what Detection Studio does.

This is a Python-based desktop GUI app built with tkinter that lets you:

• Capture face images straight from your webcam
• Train a personal face recognition model in one click
• Run live detection that simultaneously identifies known faces and detects objects, animals, and people using YOLOv8

Everything runs 100% offline on your local machine. No cloud API, no subscriptions, no internet dependency after setup. Just Python doing serious computer vision work on your webcam feed.

In this tutorial, I will walk you through every part of this project — how it is built, how to set it up, how to use all three tabs, what happens under the hood when you train a model, and how to plug in your own custom YOLOv8 model. Let’s get into it.

Tech Stack Overview

Here is everything that powers the app and what each component does:

The combination of face_recognition (which is extremely accurate for face matching) and YOLOv8 (which is fast enough to run real-time on a CPU) is what makes this project work well in practice.

Installation

Step 1 — Clone the Repository

Download and Extract the Source Code

Step 2 — Install Dependencies

pip install -r requirements.txt

The requirements.txt includes all necessary packages:

face_recognition
ultralytics
opencv-python
Pillow
numpy
dlib

Windows users: If dlib fails to install, make sure CMake and Visual Studio Build Tools are installed and your terminal has been restarted after adding CMake to PATH. Then run pip install dlib separately before running the full requirements install. This isolates the compilation step and gives you clearer error messages if something goes wrong.

Installation takes anywhere from 3 to 10 minutes depending on your machine and internet speed. The dlib compilation step on Windows is the slow part — the terminal may look frozen for a couple of minutes. That is normal.

Step 3 — Run the App

python main.py

If a window opens with three tabs at the top — Capture Faces, Train Model, Detect — you are fully set up and ready to go.

Capture Faces  →  Train Model  →  Detect

Tab 1 — Capture Faces

This is where you register new people into your face database.

How to use it:

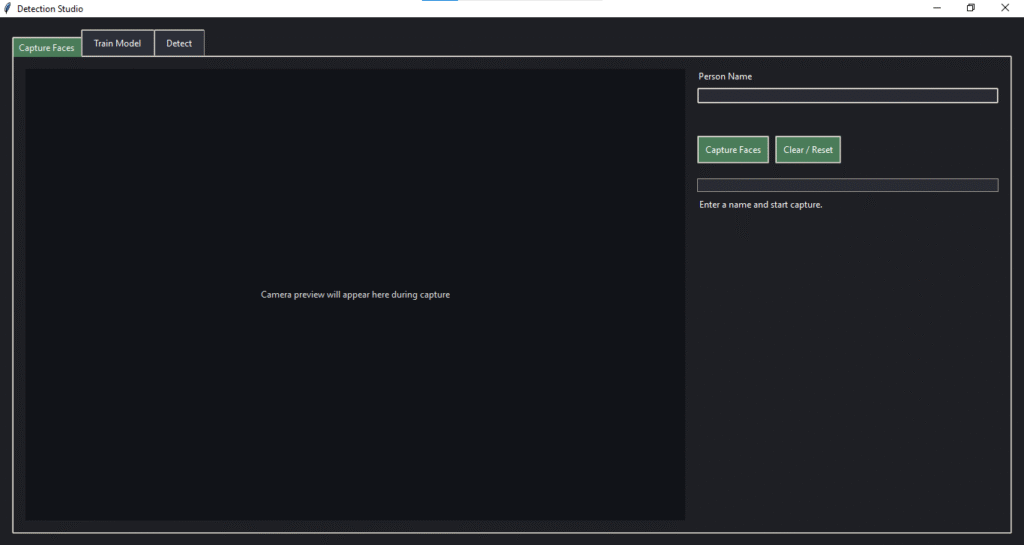

Open the Capture Faces tab. You will see a large black camera preview area on the left and a control panel on the right with a text input field and two buttons – Capture Faces and Clear / Reset.

1. Type the person’s name in the Person Name field. Use a clean name without spaces if possible — e.g. Rahul or Sara_K.
2. Click Capture Faces.
3. Look directly into the camera. The app will detect your face automatically.
4. Hold reasonably still. The app captures 15 face images in sequence.
5. Once 15 images are saved, the capture stops automatically.
6. The images are stored in data/faces/<PersonName>/.

You can register multiple people by repeating this process — just change the name each time. Each person gets their own folder under data/faces/.

Tab 2 — Train Model

After capturing faces for one or more people, switch to the Train Model tab to build your face recognition model.

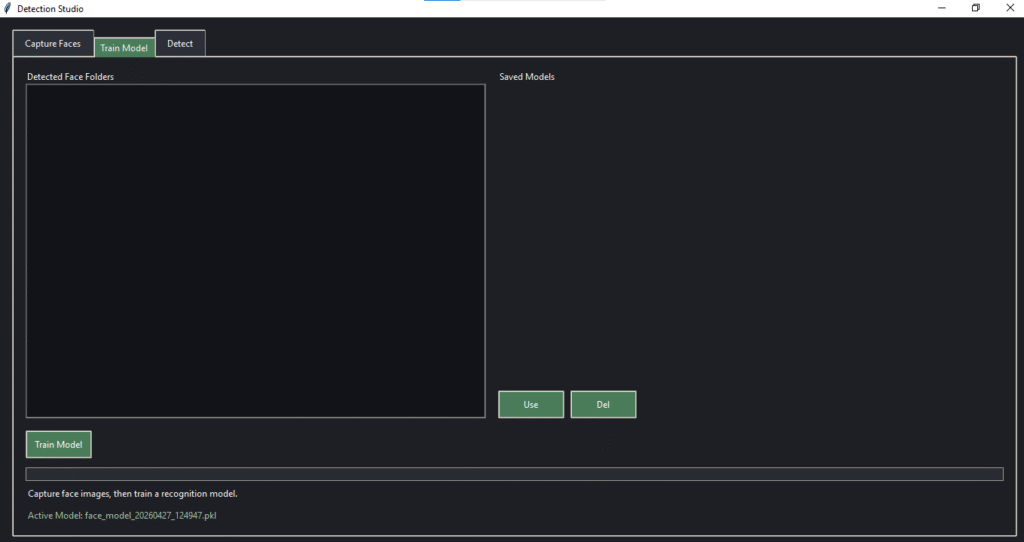

What you see on this tab:

• Detected Face Folders — a list of all person folders found in data/faces/. These are the people who will be included in the trained model.
• Saved Models — a list of previously trained .pkl model files from data/trained/.
• Train Model button — starts the training process.
• Active Model label at the bottom — shows the filename of the currently loaded model.
• Use and Del buttons — activate a selected saved model or delete it.

How training works:

When you click Train Model, the app loops through every image in every person folder under data/faces/. For each image, it uses face_recognition(which uses dlib under the hood) to extract a 128-dimensional face encoding — a numerical vector that uniquely represents the face geometry.

It then creates a mapping of { encoding_vector: person_name } for every image across every person. This mapping gets serialised into a .pkl file using Python’s pickle module and saved to data/trained/ with a timestamp in the filename (e.g. face_model_20260427_124947.pkl).

The new model is automatically set as the active model.

Training time depends on how many face images you have. For 3-5 people with 15 images each, expect 30 to 90 seconds. For larger databases it scales linearly.

At detection time, when a face is spotted in the webcam feed:

1. A new 128-dim encoding is computed for the detected face in real time.
2. This encoding is compared to every stored encoding in the .pkl model using Euclidean distance.
3. The closest matching encoding below the tolerance threshold identifies the person.
4. If no stored encoding is close enough — the label shows as “Unknown”.

This is why capturing varied angles matters. More diverse training images means more reference encodings to compare against, which makes the matching more robust.

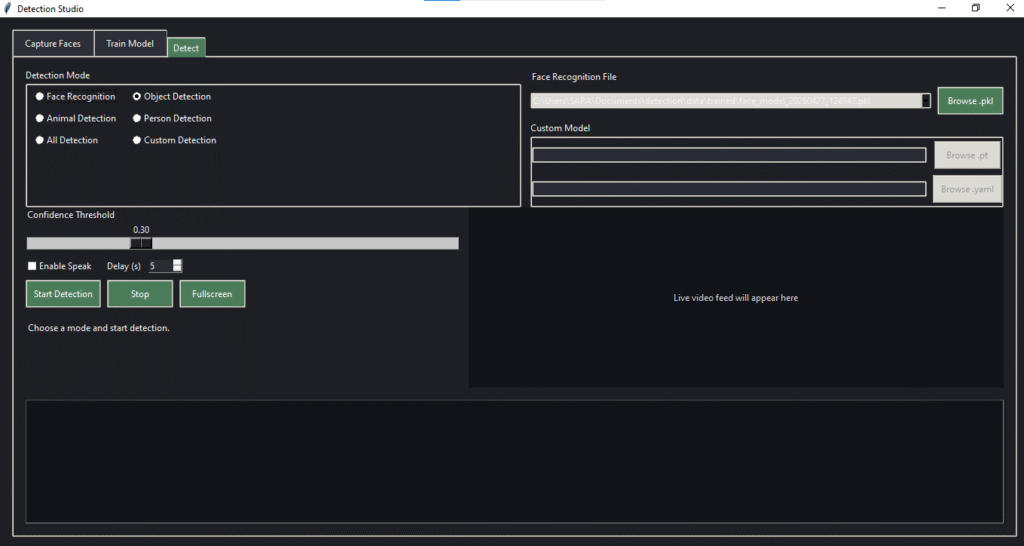

Tab 3 — Detect

This is the main operational tab. All live detection happens here.

Custom YOLOv8 Model Integration

One of the most powerful features of Detection Studio is the ability to load any custom-trained YOLOv8 model — not just the default COCO model.

What You Need

To use Custom Detection mode, you need two files:

1. A YOLOv8 weights file in .pt format (your trained model)
2. A class names file in .yaml or .yml format (the dataset config used during training)

The .yaml file should contain a names field like this:

names:
  0: helmet
  1: no_helmet
  2: safety_vest
  3: no_vest

How to Load Your Custom Model

1. Go to the Detect tab
2. Select Custom Detection mode
3. Click Browse .pt and select your YOLOv8 weights file
4. Click Browse .yaml and select your class names config file
5. Click Start Detection

Combined Face + Custom Object Detection

Here is where it gets genuinely useful. If your custom model’s class list includes a class named person, the app will automatically run face recognition on any person bounding box detected by your custom model. This means you get:

• Your custom object classes (e.g. helmets, vests, products, vehicles) detected and labelled
• Faces of any detected people identified by name simultaneously

All in one video frame, with no code changes needed. This makes the app directly applicable to real scenarios like site safety monitoring (detecting PPE compliance while also identifying workers), access control, or retail analytics.

Runtime Data and File Structure

Understanding where data is stored helps with backup and troubleshooting.

detection-studio/
│
├── main.py                        # Entry point
├── requirements.txt               # All Python dependencies
├── settings.json                  # Camera index, active model path
│
├── data/
│   ├── faces/                     # Captured face images
│   │   ├── Rahul/
│   │   │   ├── 001.jpg
│   │   │   ├── 002.jpg
│   │   │   └── ... (15 images)
│   │   └── Sara/
│   │       └── ...
│   │
│   └── trained/                   # Trained face recognition models
│       ├── face_model_20260427_124947.pkl
│       └── face_model_20260420_093015.pkl

settings.json stores your camera index and the path to the currently active face model. It is auto-updated when you change the active model in the Train Model tab.

The data/ folder contains everything important. Back it up if you want to preserve your face database and trained models. Moving the data/ folder to another machine with the app installed is all you need to transfer your entire setup.

Each .pkl file is a fully self-contained face recognition model. It holds all face encodings and the associated person names. You can maintain multiple .pkl files for different scenarios — for example, one for home use and one for an office setup — and switch between them using the Use button on the Train Model tab.

Troubleshooting

dlib fails to install on Windows

This is the most common setup issue. The error usually looks like:

error: command 'cmake' failed: No such file or directory

or

CMake must be installed to build the following extensions: dlib

Fix: Install CMake from cmake.org, making sure to check “Add CMake to system PATH” during installation. Then install Visual Studio Build Tools from Microsoft and select the “Desktop development with C++” workload. Restart your terminal completely after both installs, then retry.

Camera shows black screen or “Could not open camera” error

Fix: Open settings.json and change the camera_index value. Index 0 is usually the built-in laptop camera. Index 1 or 2 is typically a USB webcam. Try each value until the correct camera opens.

Face not being detected during capture — counter stays at 0

This means the face detection algorithm cannot find a face in the frame. Common causes:

• Poor or uneven lighting — try facing a window or lamp directly
• Face too far from camera — move closer so your face fills more of the frame
• More than one face in frame — step away from other people or turn other people away from camera
• Heavy accessories like hats, scarves, or masks blocking facial landmarks

Person shows as “Unknown” during detection

This means the face encoding from the live feed is not close enough to any stored encoding in the model. Common causes:

• Very different lighting between capture and detection sessions
• Different angle from training data
• Not enough training images — try capturing 30 to 50 images per person instead of just 15
• Model trained before the latest captures — retrain after adding more images

ModuleNotFoundError after installing requirements

If you see No module named 'face_recognition' or similar errors even after installing, you are likely running from a different Python environment than the one where you installed packages. Activate your virtual environment first, then run the app.

Poor real-time performance or very low frame rate

YOLOv8 nano model (the default) runs well on most modern CPUs. If performance is poor, lower the input resolution in the settings or check if another application is heavily using the CPU. For significantly better performance, a machine with a CUDA-capable GPU will run inference much faster.

What to Build Next

Detection Studio is a solid foundation. Here are some natural extensions once you are comfortable with the base app:

Attendance logging — write detected face names and timestamps to a CSV or SQLite database during detection. Useful for classroom or workplace attendance tracking.

Alert system — trigger a notification or play a sound when an unrecognised face (Unknown) is detected. Useful for basic access control.

Multi-camera support — extend the capture and detection logic to handle multiple camera feeds simultaneously.

Web dashboard — serve the annotated video feed over a local web server so it can be viewed in a browser on any device on your network.

Custom model training — train your own YOLOv8 model on a domain-specific dataset (safety equipment, product types, vehicle models) and load it into Detection Studio using the Custom Detection mode.

Final Thoughts

Detection Studio demonstrates something important about modern computer vision — combining powerful pre-trained models with a practical interface makes the technology accessible for real use cases, not just academic demos.

The face_recognition library handles the hard work of face encoding with high accuracy. YOLOv8 handles real-time object detection fast enough to run on a regular CPU. tkinter makes it all accessible without requiring anyone to touch the command line after initial setup.

The project structure is clean, the data flow is straightforward, and the extensibility with custom models makes it genuinely useful beyond just a learning exercise.

If you run into issues during setup, the troubleshooting section above covers the most common problems. The dlib installation on Windows is the trickiest part — everything else is standard Python package management.
